Redx Technology, an Australian company, specialises in advanced solar battery and inverter systems designed to help households and businesses achieve zero energy bills and maintain power during outages.
Their flagship product, the RX-7000Plus, is an all-in-one smart hybrid battery system featuring a 7kW solar battery inverter and 13.4kWh of battery storage. This system utilises Redx’s patented Single-Stage Buck-Boost Inverter with Step Modulation to achieve high efficiency.
The RX-7000Plus offers a cutting-edge home backup function designed to keep households powered during unexpected grid outages. For existing solar installations, Redx offers the RX-2505AC, an AC-coupled battery that integrates seamlessly to enhance energy storage capabilities.
To complement their hardware, Redx provides the Redx Power™ cloud-based software, enabling real-time monitoring and control of energy consumption across multiple sites. This platform offers centralised data storage and analysis, allowing users to leverage advanced analytics and machine learning algorithms for optimised energy utilisation and cost savings. With innovative solutions, Redx empowers Australians to harness renewable energy efficiently, reducing reliance on the grid and promoting sustainable living.
Founded in Australia in 2016 by University Professor Jonathan Chen.
Redx offer customer support through their head office in Yatala, Queensland and operates four warehouses across Australia.
Redx provides comprehensive warranties for their residential and commercial energy storage systems.
Redx’s commitment to innovation and sustainability is evident through their 30+ world-first technology patents and advanced energy solutions.
Redx Technology Australia was founded in 2016 by University Professor Jonathan Chen, with a mission to revolutionise energy storage and inverter technology. Since its inception, Redx has achieved impressive milestones, securing over 30 world-first technology patents and developing innovative products like the RX-7000Plus hybrid battery system. Their focus extends beyond hardware, offering smart energy management software that optimises energy use for homes and businesses. Redx aims to empower Australians to reduce their reliance on the grid, cut energy costs, and embrace sustainable living. With a strong commitment to innovation, they continue pushing the boundaries of renewable energy solutions both locally and globally.
Hybrid Smart Battery System
The RX-7000Plus Hybrid Smart Battery System by Redx is an all-in-one energy storage solution designed for Australian homes and businesses. It combines a powerful 7kW solar inverter with a 13.4kWh battery, allowing users to store excess solar energy for later use. The system features Redx’s patented Single-Stage Buck-Boost Inverter technology, maximising efficiency and ensuring seamless power supply during grid outages. With smart backup capabilities and cloud-based monitoring through Redx Power™, users can track and optimise their energy usage in real time. Compact, reliable, and easy to install, the RX-7000Plus helps reduce electricity bills and boosts energy independence.
RX-7000Plus Key Specifications:
| Feature | Specification |
|---|---|
| Inverter capacity | 7kW |
| Battery capacity | 13.4kWh |
| Inverter technology | Single-Stage Buck-Boost |
| Backup power | Yes |
| Monitoring | Redx Power™ cloud-based software |
| Installation | All-in-one design, wall or floor mount |
Includes 10+5 years extended warranty options and a local Australian support hotline.
Hybrid Smart Battery System

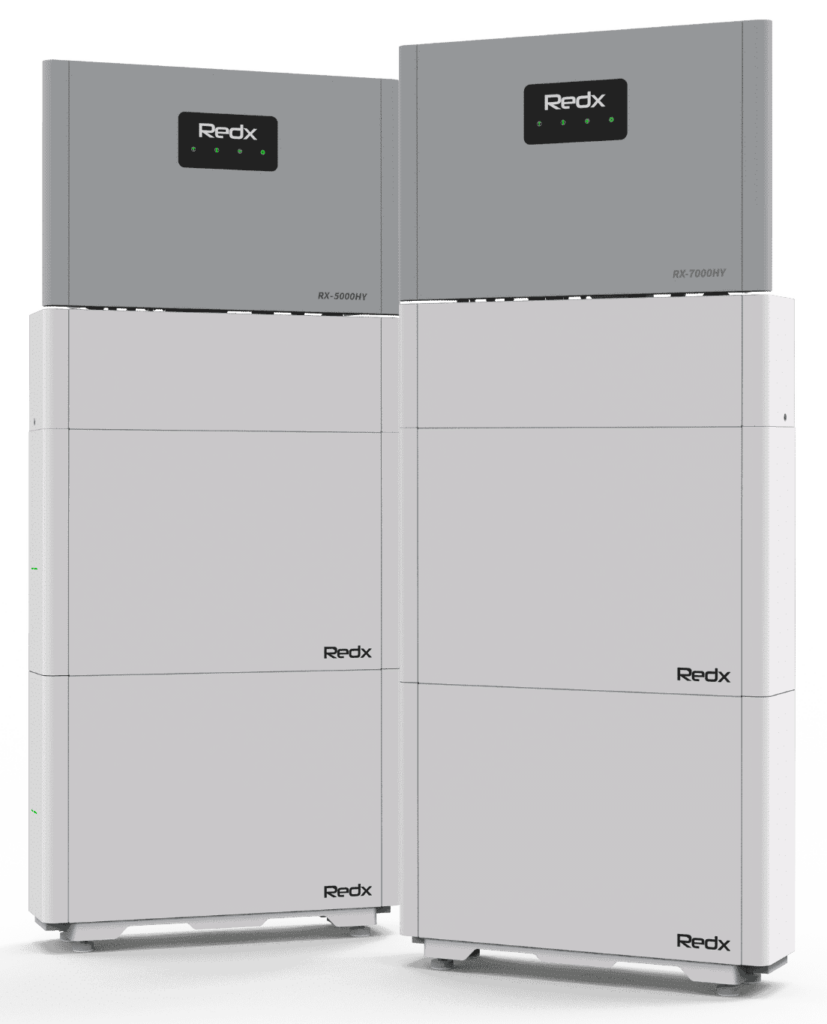

The RX-5000HY and RX-7000HY Hybrid Inverters by Redx are advanced energy solutions designed for efficient and reliable power management in Australian homes and businesses. These inverters integrate photovoltaic (PV) solar power with energy storage systems, ensuring a continuous power supply even during grid outages. Both models feature Redx’s patented Single-Stage Buck-Boost Inverter technology, which optimises efficiency and performance. The systems are equipped with multiple Maximum Power Point Tracking (MPPT) inputs to maximise solar energy utilisation. With support for both low-voltage (LV) and high-voltage (HV) battery configurations, the RX-5000HY and RX-7000HY offer flexibility to suit various energy needs. They also provide smart backup capabilities and can be monitored remotely through Redx’s cloud-based platform, allowing users to track and optimise their energy usage in real time. Compact and easy to install, these hybrid inverters contribute to reducing electricity bills and enhancing energy independence.
RX-5000HY and RX-7000HY Key Specifications:
| Feature | Specification |
|---|---|
| Inverter capacity | 5kW (RX-5000HY) / 7kW (RX-7000HY) |
| Battery compatibility | LV (42V-60V) |
| Max battery charging current | 115A |
| Max PV input voltage | 550V |
| Number of MPPT inputs | 3 |
| Backup power | Yes |
| Monitoring | Cloud-based platform |
| Installation | Wall-mounted |
These specifications highlight the versatility and robust performance of the RX-5000HY and RX-7000HY Hybrid Inverters, making them suitable for a wide range of energy requirements.
Includes 10 years warranty and a local Australian support hotline.
AC-WIND-PV BATTERY

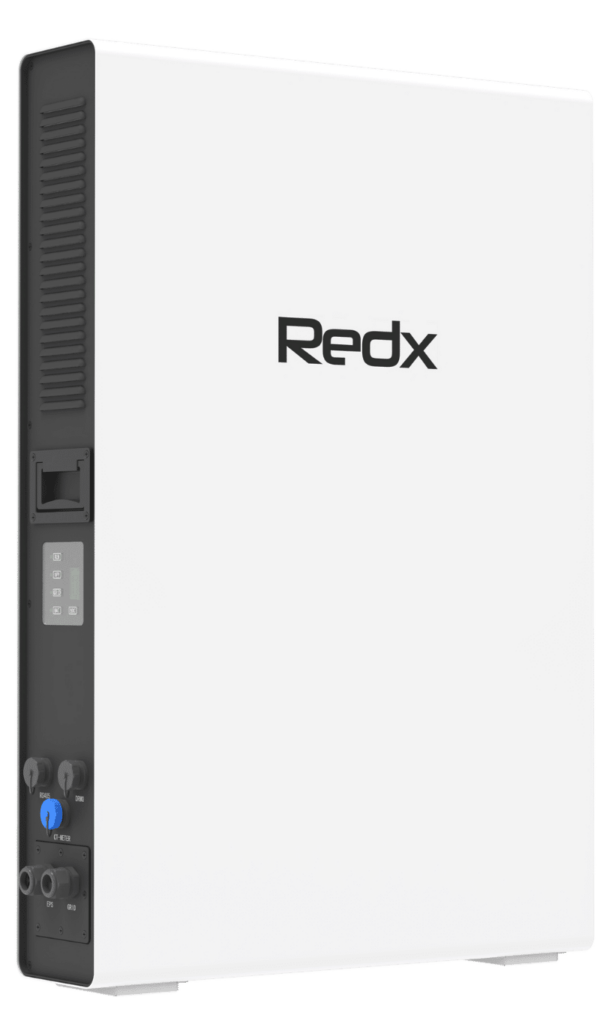

The RX-2505PW AC-Wind-PV Battery by Redx is an innovative energy storage system designed for both on-grid and off-grid applications. It integrates inputs from solar panels, wind turbines, and the grid, providing versatile energy management for small homes, remote sheds, and trailer homes. Utilising Redx’s patented FWS inverter technology, the system achieves high efficiency and reliability. The RX-2505PW is Virtual Power Plant (VPP) ready, featuring embedded hardware and software for real-time, cloud-based monitoring and control. Its low-voltage PV and wind inputs ensure safe installations, making it a flexible solution for various energy needs.
RX-2505PW Key Specifications:
| Feature | Specification |
|---|---|
| Inverter capacity | 2.5kW (continuous) |
| Battery capacity | 4.8kWh |
| Depth of discharge | 96% |
| Battery life cycle | 4,000 cycles |
| Max efficiency | 96% |
| Round trip efficiency | 92% |
| AC output voltage | 230V |
| Max AC output current | 12A |
| Operating temperature range | 0°C to 50°C |
| Dimensions (W x H x D) | 600mm x 900mm x 145mm |
| Weight | 75kg |
| Communication modes | Modbus, RS485, Wi-Fi, 4G |
| Ingress protection rating | IP32 |
| Warranty | 10 years |
These specifications underscore the RX-2505PW’s capability to harness renewable energy from multiple sources, providing a reliable and efficient power solution for diverse applications.
Includes 10 years warranty and a local Australian support hotline.
